• Supernova Euro Series

400 KVA to 2250 KVA

22500 kVA when paralleled

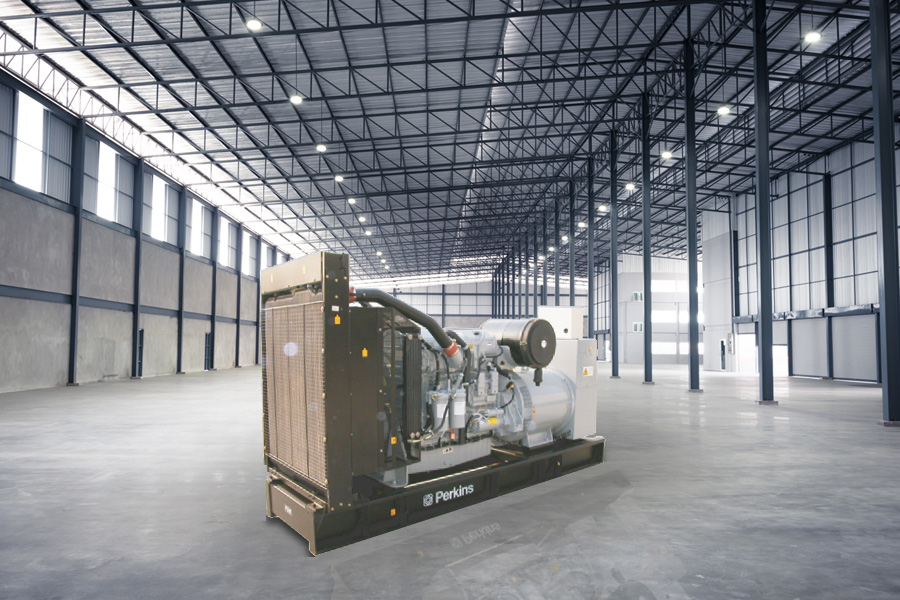

Supernova Diesel Electric Gensets are powered by Perkins Diesel Engine ranging from 400kVA to 2250kVA. Each Supernova Diesel Electric Genset is manufactured under stringent quality assurance process and undergoes in-house testing. Engine performance corresponds to ISO 3046, BS 5514 and DIN6271. The technical data applies to an engine operating on a fuel with a calorific value of 42.7 MJ/Kg(10200 Kcai/Kg) and a density of 0.86 Kg/Liter and as per BS 2869 Part 2 1998 Class A2 or ASTM D975D2. AC Generator performance corresponds to IEC-34, IS-4722 The unmatched fuel efficiency and ease of maintenance are the key factors which makes them preferred choice of customers. choice of customers.

Salient Features

  • In line cylinder arrangement across the full range
  • Six Cylinder in Line upto 750kVA, eight Cylinder lnline for 1010 kVA
  • Twelve Cylinder VEE Engine from 1250kVA to 1700kVA D.G. Set application
  • Compact Size for Easier Transportation and Installation
  • High Block Loading Capability Due to Split Exhaust System
  • Commonality of Components Over the Entire Series of Engines
  • Low Operating and Maintenance cost
  • Excellent Power to Weight Ratio
  • Designed to Provide Excellent Service Access for Ease of Maintenance
  • Types for D.G. Sets

    • Open Type D.G.Sets (above 1010 kVA)
    • Silent D. G. Sets (Mandatory up to 1000 kVA)
    • Containerized D.G. Sets

    Standard Scope Comprising Of

    • Diesel Engine I AC Generator I base frame I Standard Control Panel
    • Radiator I Silencer I Battery & Battery Cables I AVMs I First Fill of
    • Lub. Oil I First Fill of Coolant I D.G. Set Controller I fuel tank I
    • Wiring harness I Sensors.

    Options Available

    • Voltage Options: 415 VI HT-3.3/6.6/11 kv
    • Cooling Systems: Remote Radiator / Heat Exchanger
    • Electrical Options: Auto Mains Failure / Auto Synchronizing Panels / CRM / NISI NGRNCB
    • Standard Switchgear- L& T / Schneider, other makes can be offered on request
    • Standard Controllers- Woodward / DIEF / DeepSea, other makes can be offered on request

    Rating Table

    Radiator Cooled
    Prime Power
    1500RPM (50Hz) 3 Ph., 415V, 0.8 PF
    Overall Dimensions
    (Acoustic Enclosure)
    Genset Model Engine Model BHP Rated kVA Rated kW Length Width Height Weight
    SP400 2206D-EI3TAG3 492 400 320 5550 2000 2790 5400
    SP500 2506D-EI5TAG2 607 500 400 5600 2200 3020 6900
    SP625 2806D-EI8TAGIA 724 625 500 5600 2200 3020 7400
    SP750 4006D-23TAG2A 894 750 600 6900 2600 3760 9900
    SP800 4006-23TAG3A 945 800 640 6900 2600 3760 9939
    SP1010 4008TAG2A 1206 1010 808 8312 2600 3760 13340
    SP1010 4008-30TAG2 1206 1010 808 8312 2600 3760 13340
    SP1125 4008-30TAG3 1270 1125 900 8312 2600 3760 15000
    SP1250 4012-46TAGOA 1497 1250 1000 9112 2600 3760 16456
    SP1364 4012-46 TAG1A 1625 1364 1091 9112 2600 3760 16800
    SP1500 4012-46TAG2A 1785 1500 1200 9112 2600 3760 17354
    SP1700 4012-46TAG3A 2006 1700 1360 9112 2600 3750 18150
    SP1850 4016-61TRG1 2208 1850 1480 10363 3300 3950 23233
    SP2000 4016-61TRG2 2377 2000 1600 10363 3300 3950 24033
    SP2250 4016-61TRG3 2647 2250 1800 10363 3300 3950 25081

    Rating Guidelines

    Prime Power rating corresponds to ISO standard power for continuous operation. It is applicable for supplying electrical power at variable load for an unlimited number of hours instead of commercially purchased power. This is as per ISO 8528.
    PAN India spares availability through strategically located stock points across the country. Services offered through a strong network of seven area offices and resident engineers located at Tier II and Tier Ill cities and through service dealers.
    As per our offer
