Trolley Mounted DG Sets
  • Supernova Euro Series

250 kVA to 650 kVA

6500 kVA when paralleled

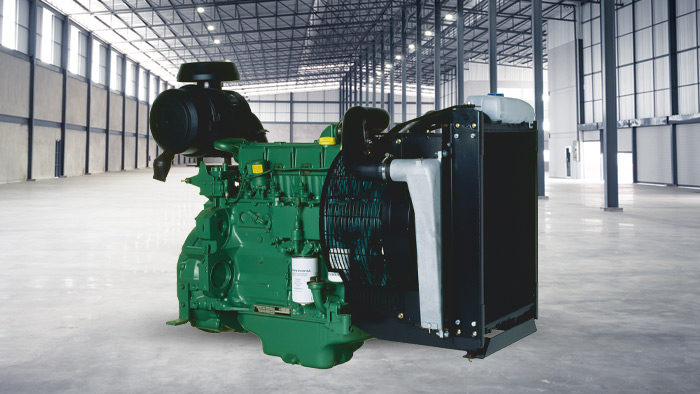

Supernova Diesel Electric Gensets are powered by imported Swedish make Volvo Penta Diesel Engines ranging from 250 KVA to 650 KVA. The complete range is CPCB II compliant and NAL (National Aerospace Agency) approved. Each Supernova Diesel Electric Genset is manufactured under stringent quality assurance process and undergoes in-house testing. Engine corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine operating on a fuel with a calorific value of 42.7 MJ/Kg (10200 Kcai/Kg) and a density of 0.86 Kg/Liter and as per BS 2869 Part 2 1998 Class A2 or ASTM D975D2. AC Generator performance corresponds to IEC-34, IS-4722.

The unmatched fuel efficiency and ease of maintenance are the key factors which makes them preferred choice of customers.

Salient Features

  • Six Cylinders In-line up to 650 KVA Dg Set
  • Low Operating Cost & Maintenance Cost
  • Compact Size for Easier Transportation and Installation
  • High Block Loading Capability
  • Full Authority Electronic Engine Management System
  • Highly Reliable & Highly Fuel Efficient
  • Liner Load vs SFC Curve- Substantial Fuel Saving on Part Load
  • Excellent Power to Weight Ratio
  • Low Vibrations & Emissions
  • Overhead Camshaft: Accurate Valve Timing and Less Moving Part
  • Add on type, specially designed intake air filtration system for
  • Types for D.G. Sets

    • Open Type D.G.Sets (above 1010 kVA)
    • Silent D. G. Sets (Mandatory up to 1000 kVA)
    • Containerized D.G. Sets

    Standard Scope Comprising Of

    • Diesel Engine I AC Generator I base frame I Standard Control Panel
    • Radiator I Silencer I Battery & Battery Cables I AVMs I First Fill of
    • Lub. Oil I First Fill of Coolant I D.G. Set Controller I fuel tank I
    • Wiring harness I Sensors.
    Eco Series Diesel Generator

    Options Available

    • Cooling Systems: Heat Exchanger
    • Electrical Options : Auto Mains Failure / Auto Synchronizing and Load sharing Panels.
    • Standard Switchgear - L& T / Schneider, other makes can be offered on request
    • Standard Controllers - Woodward / DIEF / DeepSea, other makes can be offered on request
    • Extended Warranty

    Rating Table

    COOPER RATING TABLE

    Radiator Cooled
    Prime Power
    1500RPM (50Hz) 3 Ph., 415V, 0.8 PF
    Overall Dimensions
    (Acoustic Enclosure)
    Genset Model Engine Model BHP Rated kVA Rated kW Length Width Height Weight
    SV250 TAD754GE 310 250 200 4400 2000 2800 4370
    SV320 TAD1351GE 389 320 256 4400 2000 2980 5554
    SV350 TAD1352GE 442 350 280 4400 2000 2980 5684
    SV380 TAD1354GE 461 380 304 4400 2000 2980 5684
    SV415 TAD1355GE 502 415 332 4400 2000 2980 5769
    SV500 TAD1651GE 600 500 400 5600 2200 3025 6944
    SV600 TWD1652GE 710 600 480 5600 2200 3025 7240
    SV650 TWD1653GE 767 625 500 5600 2200 3025 7443

    Rating Guidelines

    Prime Power rating corresponds to ISO standard power for continuous operation,. It is applicable for supplying electrical power at variable load for an unlimited number of hours instead of commercially purchased power. This is as per ISO 8528.
    PAN India spares availability through strategically located stock points across the country. Services offered through a strong network of seven area offices and resident engineers located at Tier II and Tier Ill cities and through service dealers.
    All equipments have a warranty either against faulty workmanship or manufacturing defects for a period of 26 months from the date of dispatch or 24 months from the date of commissioning or 3000 operating hours, whichever occurs first. This warranty is back to back basis by respective engine and alternator manufacturers. This shall however exclude rubber parts and electrical gauges, faults due to mishandling, misuse or improper operation and maintenance. This warranty applies only if the services and spares during the warranty period and entrusted to Supernova Engineers Ltd. The warranty shall become null and void if the services and spares during the warranty are provided by any unauthorized vendor.
