1850 kVA to 2250 kVA

Established in 1985, Supernova Engineers Ltd. is a leading Diesel Electric Genset manufacturer. Supernova Gensets EURO Series is powered by Perkins Diesel engines ranging from 1850 kVA to 2250 kVA. Each Supernova Genset is manufactured under a stringent quality assurance process and undergoes rigorous in-house testing in state-of-art manufacturing facility conforming to ISO 9001, ISO 14001, ISO 45001.

Engine

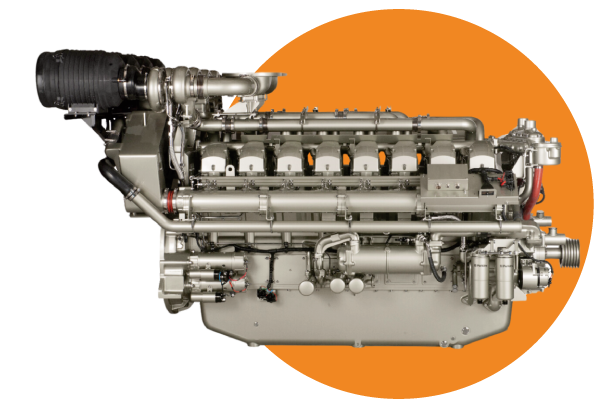

Perkins 4016TRG Series Engine

Salient Features

Market leading power density
No deration in power output up to 50 Deg. C.
Vee cylinder configuration engine up to 2250kVA (Prime)
High block load capability due to split exhaust system.
Average loading of Engine is 80% as against industries standard up to 70-75%.
Commonality of component over the entire series of Engine.
Unit injection system with electronic governor to optimize fuel consumption.
Low Operating and maintenance cost Service interval 750 hrs. / 2 Year
Coolant change interval 3 Years / 6000hrs.
Designed to provide excellent service access for Easy of Maintenance.
Compact size for easier transportation and installation.

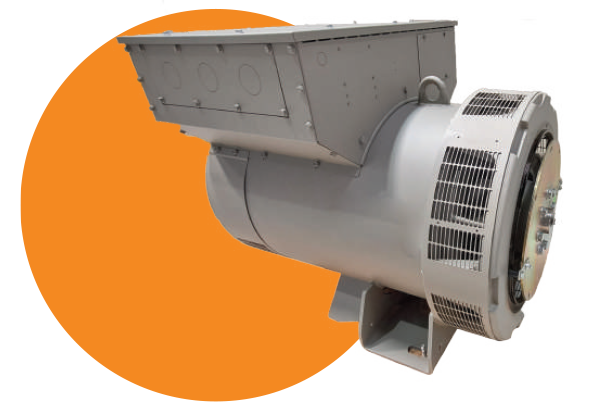

AC Generator

Brushless, single bearing, self-exited, self-regulated type.
Enclosure IP23
Voltage regulation (Max.) +/ 0.5 %
Class of insulation – H class temperature rise limit – Class H
Stator Winding꞉ Double layer, Wire wound
Rotor꞉ Dynamically balanced to better than BS681꞉ Part 2 Grade 2.5 for minimum vibration
Wave form Distortion꞉ <4% at no-load condition
Total Harmonic Factor꞉ <2% at no-load condition
Conforming to IS 13364 & IS/IEC 60034-1
Conforming to IS 13364 & IS/IEC

Control Panel

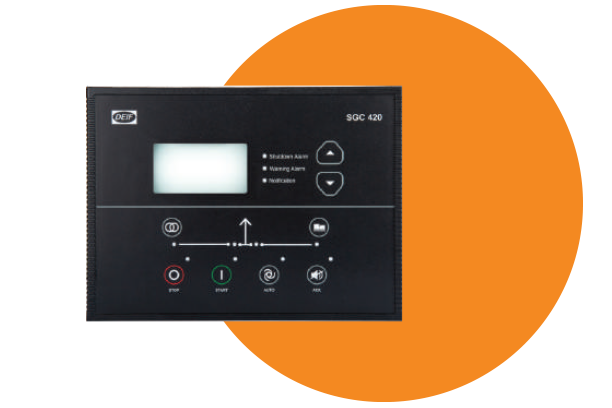

Microprocessors based AMF controller (DEIF-SGC-420 or equivalent)
Graphical LCD display with best in class monitoring and diagnostic functionality / Remote monitoring compatibility.
MCC/ACB of reputed make
Option Available
- Voltage Options꞉ 415V/HT-3.3/6.6/11 kv.
- Cooling Systems꞉ Remote Radiator/Heat Exchanger.
- Standard Switchgear-L&T/Schneider, other makes can be offered on request.
- Standard Controllers - Woodward/DIEF/DeepSea, other makes can be offered on request.

Types for DG Sets

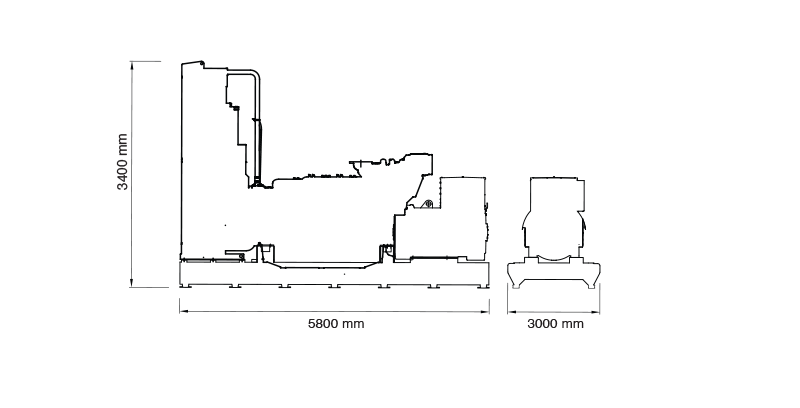

Open Type D.G.Sets (above 1010 kVA)
Silent D.G. Sets (Mandatory up to 1000 KVA)

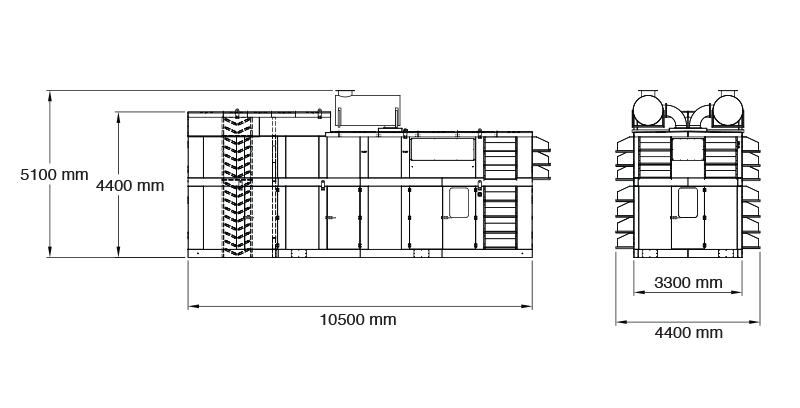

Containerized D.G. Sets
Electrical Options꞉ Auto Mains Failure / Auto Synchronizing Panels/CRM/NIS/NGR/VCB.

Standard Scope Comprising Of

Diesel Engine / AC Generator / Base Frame / Standard Control Panel /
Radiator / Silencer / Battery & Battery Cables / AVMs / First Fill of Lub. Oil /
First Fill of Coolant / D.G, Set Controller / Fuel tank / Wiring Hardness / Sensors.

Best in class warranty

36 months from the date of shipment or 24 months from the date of
commissioning or 6000 running hours whichever occurs first.
Extended warranty option for limited usage.

Power Standards

Engine Performance corresponds to ISO 3046, BS 5514, SAE J1349 and DIN 6271.
The technical data applies to an engine operating on a fuel with a calorific value of 42.7 MJ/Kg (10200 Kcal/Kg.) and a density of 0.84 Kg/liter (7.01 lb/US gal).
Engine speed governing is in accordance with ISO 3046, Class A1 and ISO 8528 Class G2/G3.
